What Is Design Intent in Engineering?

Design intent is the purpose, reasoning, constraints, and relationships behind an engineering design. It explains why decisions were made, which conditions must remain true, and how the design should respond when a parameter or requirement changes.

A drawing, netlist, or 3D model records an outcome. Design intent makes that outcome understandable, editable, and reproducible.

What does design intent mean?

In engineering, design intent connects a design to the decisions that make it valid. It can include:

• the function the design must perform
• the requirements and operating conditions it must satisfy
• the parameters that drive its size, shape, or behavior
• the constraints and relationships that must be preserved
• the standards, tolerances, and manufacturing rules that apply
• the assumptions behind a component, material, or topology choice
• the way the design is expected to change during revision or reuse

Design intent is therefore more than geometry. Two models can look identical today but behave very differently when edited. If one model preserves the relationships the engineer intended and the other breaks when a dimension changes, only the first reliably captures the design intent.

Design intent in CAD

In parametric CAD, design intent is often described as the logic that controls how a model responds to change. Dimensions, constraints, equations, feature relationships, reference geometry, and configuration rules can all express that logic.

For example, suppose a mounting hole must always remain centered on a plate. A fixed distance from one edge may place the hole correctly at the current plate width, but it will no longer be centered when the width changes. A symmetric relationship or an equation tied to the plate width captures the actual intent.

Both models may initially produce the same geometry. The difference becomes visible only when the design changes.

This is why design intent matters in parametric modeling: the objective is not merely to create the correct shape once. It is to create a model that changes predictably, remains valid across expected revisions, and communicates how it is meant to be maintained.

This meaning is consistent with established CAD usage. PTC's Creo documentation connects design intent to a product's purpose and function, then explains how parametric relationships and associativity preserve it as a model changes.

Examples of design intent in engineering

Design intent appears differently across engineering disciplines, but the underlying question is the same: what must remain true when the design changes or moves into another tool?

Mechanical CAD example

A bracket is designed so a bolt pattern stays centered as the bracket width changes. The editable model captures:

• the bracket width as a driving parameter
• equal spacing around the centerline
• minimum edge-clearance requirements
• hole diameter and tolerance
• a relationship between the bolt pattern and mating assembly

The exported solid records the bracket's current shape. The parametric model records how the bracket is supposed to behave.

Electronic component example

A component datasheet contains the information needed to create a schematic symbol, PCB footprint, and 3D package model. The design intent includes more than the outline shown in the package drawing. It may include:

• pin names, numbers, types, and groupings
• pin 1 orientation and polarity
• package dimensions and tolerances
• the relationship between the symbol, footprint, and 3D model
• land-pattern rules, density level, and assembly clearance
• electrical, thermal, and manufacturing constraints

If those relationships are not preserved, the resulting CAD assets may look plausible while still being incomplete or inconsistent.

PCB-to-enclosure example

An ECAD model may define the board outline, mounting holes, connector locations, component heights, and keepout areas. A mechanical engineer needs that information to design the enclosure.

The shape of the board is only part of the handoff. The design intent also includes which features are controlled by the PCB, which clearances are mandatory, which locations may change, and which relationships must remain synchronized. If the handoff carries geometry without that context, the receiving engineer must reconstruct it.

Design reuse example

An engineer reuses a power-supply design in a product with a different input range and thermal envelope. To adapt it safely, the engineer needs to know why the original components were selected, which values were calculated together, what derating assumptions were used, and which layout constraints affect performance.

The schematic shows what was built. Design intent explains which changes are safe.

Why is design intent important?

Engineering designs rarely remain static. They are revised, configured, handed to another discipline, moved between tools, reused in new products, and maintained by people who did not create the original.

Clear design intent helps teams:

• make changes without breaking critical relationships
• understand why a decision was made
• reuse designs without reverse-engineering them first
• reduce errors during ECAD-to-MCAD and other cross-tool handoffs
• review assumptions before they become geometry
• automate repetitive work with explicit, verifiable rules
• preserve engineering knowledge when people or tools change

Without design intent, a design can be technically complete but operationally fragile. It may be difficult to edit, risky to reuse, and expensive to transfer.

How does design intent get lost?

Design intent is usually lost when an engineering artifact is separated from the relationships and reasoning that created it.

Common causes include:

1. Static documentation. PDFs, images, and drawings are optimized for human reading. They may contain the necessary facts, but those facts are distributed across tables, notes, diagrams, and tolerances rather than represented as connected engineering data.
2. Neutral-file exchange. Exchange formats can preserve geometry and selected metadata, but they do not always carry the native feature history, parametric relationships, editable constraints, rules, or source context used to author the design.
3. Manual re-entry. When engineers copy dimensions, pin data, tolerances, and properties from one system into another, the relationships between those facts can be missed or interpreted inconsistently.
4. Tool boundaries. ECAD, MCAD, simulation, PLM, and library systems structure information differently. A valid relationship in one environment may have no direct representation in the next.
5. Undocumented decisions. A model can contain dimensions and constraints without explaining why they exist. When the reasoning remains in an engineer's memory, it is difficult for another person or system to reuse safely.

Intent loss is not always obvious at the moment of transfer. It often appears later as a broken feature, a footprint discrepancy, a clearance conflict, a repeated review cycle, or a model that must be rebuilt before it can be changed.

Design intent vs. requirements, geometry, and design history

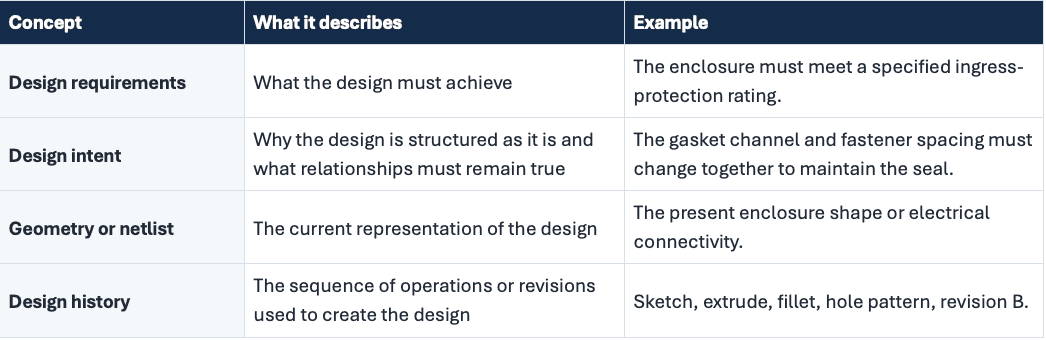

These concepts are related, but they are not interchangeable.

Requirements help define the goal. Geometry and netlists record the current result. Design history records what happened. Design intent connects those artifacts to the engineering logic that should govern future decisions.

How can engineers preserve design intent?

Design intent survives when it's captured as constraints and relationships, not flattened into geometry.

Here's how Neurocad does it, mechanically:

1. Extraction over translation
   Conventional tools map file formats, bytecode to bytecode, without reasoning about why a dimension is what it is. Neurocad extracts design intent directly from source documentation (datasheets, PDFs, reference designs), resolving ambiguous or incomplete values using ratiometric inference and manufacturing tolerances. That's the propagation-vs-translation distinction: translation copies a result, propagation carries the logic that produced it.
2. Implicit modeling as the storage mechanism
   Instead of storing fixed coordinates, Neurocad's kernel stores geometry as constraints and parameters. This is the technical reason intent "survives" at all. Change an upstream value, and the geometry updates correctly instead of breaking. It's the difference between a parametric asset and a translated file.
3. Native synthesis, not export
   The output is generated directly for the target tool (Altium, SolidWorks, Cadence, Siemens EDA) via the desktop bridge, called Link. Because it's native, the asset participates immediately in validation, layout, and simulation. The relationships aren't approximated, so footprints don't need to be redrawn and assemblies behave the way the original design intended.
4. Zero re-entry closes the leak point
   Most intent loss happens in the handoffs, when an engineer manually re-keys a value from a PDF. Every re-entry point is a chance for intent to drift from the source. Neurocad's automation pipelines (git-triggered, API-driven) eliminate that step, so libraries stay in sync with documentation. The engineer verifies the artifact within Neurocad and can modify in the Editor, if necessary, before sending to their CAD tools.

How Neurocad handles design intent

Neurocad captures design intent from the engineering artifacts teams already use, including datasheets, PDFs, images, package drawings, reference designs, existing CAD outputs, and IPC guidelines.

The process has three stages:

1. Extract and structure. Neurocad identifies dimensions, parameters, pin data, tolerances, constraints, IPC guidelines, and relationships in the source material and normalizes them into a tool-independent intent model.
2. Review the intent. Before an asset is generated, the extracted and inferred information is surfaced for an engineer to confirm or correct. Ambiguities are reviewed as engineering decisions rather than hidden inside an output.
3. Generate native assets. Once the intent is confirmed, Neurocad uses deterministic, constraint-driven generation to create native assets for the target ECAD or MCAD environment, including schematic symbols, PCB footprints, and parametric 3D models.

This approach moves engineering review upstream. Instead of inspecting a finished asset and tracing an error backward, the engineer reviews what the system understood before that understanding becomes geometry.

The result is design intent that can be captured once, verified, and carried into reusable engineering assets without manually reconstructing the same information at every boundary.

See design intent extraction on one of your own parts. Start free trial or request a demo.

Frequently asked questions

What is design intent in simple terms?

Design intent is the explanation of why a design is built the way it is and how it should behave when something changes. It includes the purpose, constraints, relationships, assumptions, and rules behind the current geometry or connectivity.

What is design intent in CAD?

In CAD, design intent is the logic that controls how a model should respond to edits. Parameters, dimensions, constraints, equations, references, and feature relationships can express that logic so the model changes predictably rather than breaking or producing an unintended result.

What is an example of design intent?

If a mounting hole must remain centered as a plate changes width, the centered relationship is the design intent. A fixed dimension may create the correct geometry once, but a symmetric constraint or equation preserves the intended behavior across revisions.

What is the difference between design intent and design requirements?

Design requirements state what a product must achieve. Design intent explains why design decisions were made and which relationships or rules must be preserved to continue meeting those requirements as the design changes.

Why is design intent lost between engineering tools?

Different tools represent engineering data in different ways. A transfer may preserve geometry, connectivity, or selected metadata while omitting native parameters, constraints, feature logic, source evidence, or decision context. Engineers then have to reconstruct the missing relationships manually.

Can AI capture design intent?

AI can help extract relationships, constraints, and parameters from unstructured engineering documents, but engineering judgment remains essential. A reliable workflow should expose extracted and inferred information for review before using it to generate a design asset.
